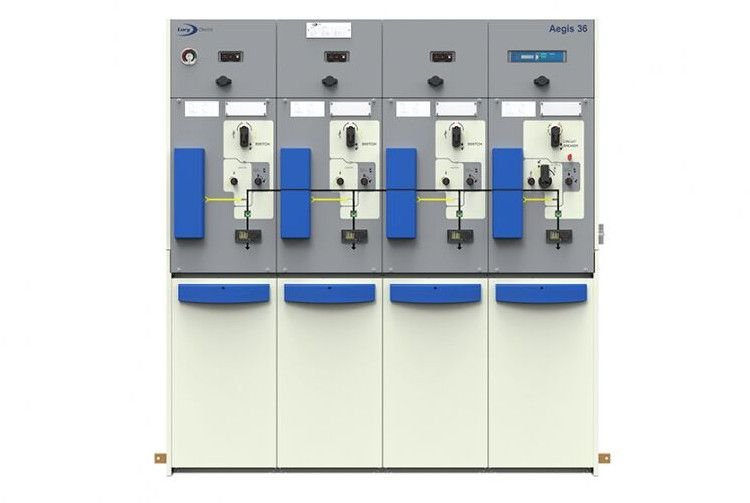

33 Kv Ring Main Unit
| Business Type | Exporter, Supplier, Distributor |
| Brand Name | Lucy Electric |
| Application | Solar,Infra,Building,Industries,Hospitals,Shopping Centers,Hotels,Office Buildings,Data Centers,Warehouses,Schools,Houses |
| Voltage | 36 KV |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Rated Current
630 A
Country of Origin
India
No. of Poles
3
Making Capacity
62.5 KA
Rated Short Time Current
25 KA
Rated Frequency
50 Hz
Rated Current Ring Switch
630 A
Rated Current Vacuum Circuit Breaker
630 A
Power Frequency Withstand Voltage
70 kV
Inpulse Withstand Voltage
170 KVP
Short Circuit Breaking Current
25 KA/SEC
Making Current
62.5 KAP
Ingress Potection Enclosure
IP54
Ingress Protection Tank
IP67
Dimensions (W x H x D)
1610 x 1690 x 870 mm
Internal Arc Rating
25 KA Per Sec
Energy Source
Wind Power, Solar Power
Energy Distribution
Compact Substations, Distribution Networks
Industries Usage
Water and Waste Water Management, Mining
